Overview

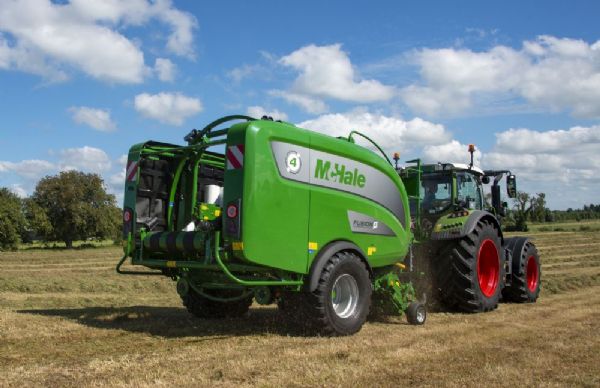

The McHale Fusion 4 is a robust, fully automatic,
integrated baler wrapper recognised worldwide for
its unique patented bale transfer, vertical wrapping
ring and high output.
The machine is equipped with a 25-knife chopping unit,
automatic progressive greasing system and a servo
operated load sensing control valve, which when
combined with the Expert Plus control console,
makes the baling and wrapping process fully
automatic. The machine is fitted with 560/60-22.5
tyres as standard.
Patented Bale Transfer
When the netting process is complete the bale
chamber splits horizontally. As the top section
of the bale chamber moves up, the lower section
of the bale chamber simultaneously moves up and
out, transferring the bale onto the wrapping platform.
Vertical Wrapping Ring
The vertical wrapping ring is fitted with two
750 mm dispensers, which take approximately 18
seconds to apply 4 layers of film and approximately
24 seconds to apply 6 layers of film in ideal
working conditions. In ideal operating conditions,
this means that the wrapping platform is always
waiting for the next bale.
Features:
Profi-Flo Pick-Up
McHale have created their highest output pick-up
for the Fusion 4 range. The new Profi-Flo pick-up
has been designed to increase crop intake through
more efficient crop flow and has been engineered
to ensure end users are operating with a
high-performance pick-up that is designed
to suit various working conditions.
Pick-Up
Vertical Wrapping Ring
The vertical wrapping ring is fitted with two
750 mm dispensers, which take approximately
18 seconds to apply 4 layers of film and
approximately 24 seconds to apply 6 layers
of film. This means that the wrapping platform
is always waiting for the next bale.
Heavy-Duty PROFI-FLO Pick-Up
Adaptive Intake
Over the course of a baling season, machines
have to work with different volumes of crop. The
McHale patented adaptive intake allows the
intake area to automatically adjust for light
and heavy crops to facilitate a smooth crop
flow into the chamber.
Split Drive GearBox
All machines in the McHale Fusion range
come fitted with a 540 rpm split drive gearbox
as standard. The gearbox design ensures that
power is evenly distributed to both sides of
the machine.
Heavy Duty Feed Rotor
The star shaped feed rotor ensures a
high-capacity flow of crop into the bale chamber.
The flights on the rotor are laid out in a spiral
formation to achieve consistent crop flow.
As crop enters the rotor, rotating flights feed
the crop to the bale chamber.
Chopper Unit
To ensure a consistent and even chop quality,
a robust and powerful 25 knife chopper unit has
been developed for the McHale integrated bale
wrapper range.
Selectable Knife System
All McHale Fusion machines have the option
to be fitted with a selectable knife system.
Various knife configurations can be chosen
depending on the knife bank specification.
Drop Floor Unblocking
As baling conditions are not always ideal,
uneven swaths can occur which can lead to
blockages. All machines in the McHale Fusion
4 range are fitted with the McHale drop floor
unblocking system, a feature which operators
have come to love for its simplicity of use and
effective unblocking cycle.
Greasing and Oiling
The McHale Fusion 4 range of machines are
fitted with individual grease and oil pumps.
The grease pump is connected to the
downward movement of the bale tip, while
the oil pump is connected to the upward
movement of the bale tip. This ensures that
grease and oil is applied evenly and continuously
as the machine operates.
High Performance Binding
Two high performance binding systems have
been designed & developed to ensure optimum
performance. The Fusion 4 & Fusion 4 Pro
are equipped with a pivot stretch net system
and the Fusion 4 Plus is fitted with an infinite
stretch hydraulic binding system
Patented High Speed Bale Transfer
The McHale Fusion 4 range is fitted with a
Servo Operated Load Sensing Control Valve
which, makes the baling and wrapping process
fully automatic.
Wrapping System
In normal working conditions, the ever-efficient
wrapping process is always completed ahead
of the baler, meaning that the wrapping platform
is always ready and waiting to receive the next bale.
Expert Plus Control Console
The McHale Fusion 4 is fitted with an Expert Plus
control console, which features a large graphic
display; this allows the operator to monitor the
baling process graphically from the control console.
