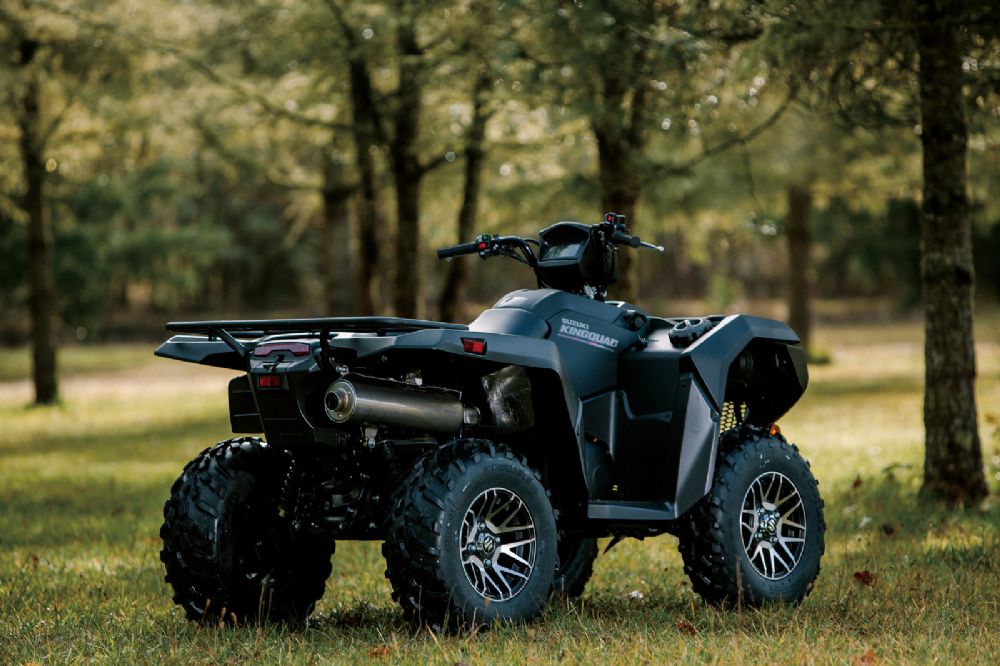

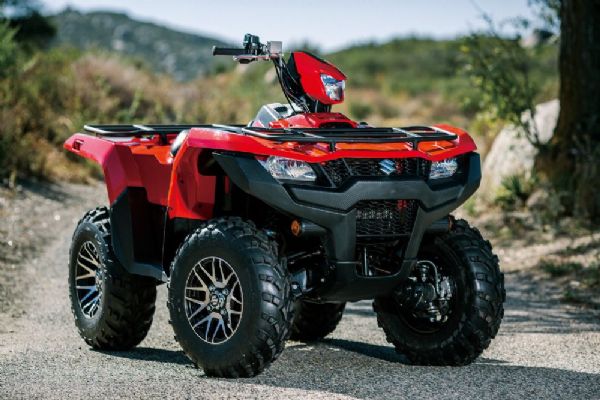

Suzuki Kingquad 750 Power Steering LT-A750XP

  • Year: 2020

Benefits & Features

• Powerful and smooth 722 cc engine with great

torque, plus increased towing capacity to a

market-leading 600 kg, means you can tow

or carry whatever you need to.

• Updated trailer hitch receiver, to allow you to

change hitch and ball types quickly.

• Improved utility-use and ease-of-ownership

functions including handlebar-mount head light,

LED rear combination lights, service reminder

indicator and new storage.

• Fully independent suspension along with superior

ground clearance makes light work of any terrain.

• Easy selection between 2 and 4-wheel drive at the

push of a button, with optional diff lock for even

greater traction.

• Consistent and reliable braking power from a

sealed and oil bathed rear disc brake.




Dimensions & Weight

Overall length: 2115mm (83.3in)
Overall width: 1210mm (47.6in)
Overall height: 1285mm (50.6in)
Wheelbase: 1285mm (50.6in)
Seat height: 920mm (36.2in)
Kerb Mass: 329kg
Fuel capacity: 17.5litres (3.8 UK gallons)
Ground clearance: 260mm (10.2in)
Hitch capacity: 600kg

Engine Specification

Engine capacity: 722cc
Engine: 4-stroke, single cylinder, DOHC, 4-valve
Bore: 104mm x 85mm
Compression ratio: 9.9:1
Lubrication: Wet sump
Ignition: Electronic ignition (CDI)
Fuel system: Fuel injection
Starter: Electric
Transmission: CVT, 2-speed forward with reverse and front diff-locked 4WD

Chassis Specification

Front suspension: Independent, double wishbone, oil-damped. Spring preload, 5 way adjustable
Rear suspension: Independent, double wishbone, oil-damped. Spring preload, 5 way adjustable
Front brakes: Dual discs, hydraulically operated
Rear brakes: Sealed oil-bathed multi-disc
Front tyres: AT25 x 8-12, tubeless
Rear tyres: AT25 x 10-12, tubeless
