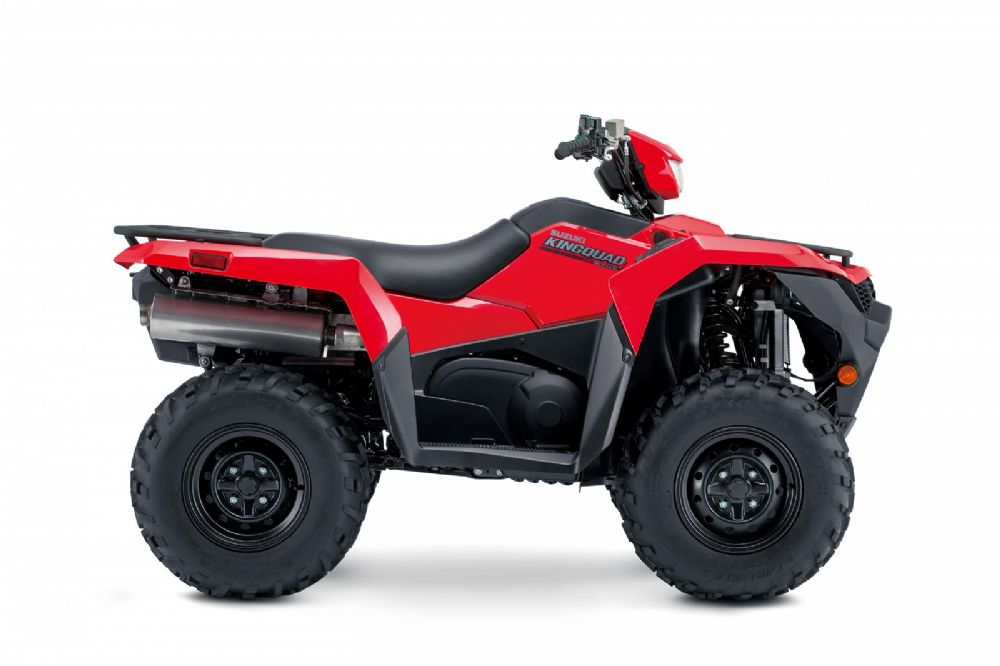

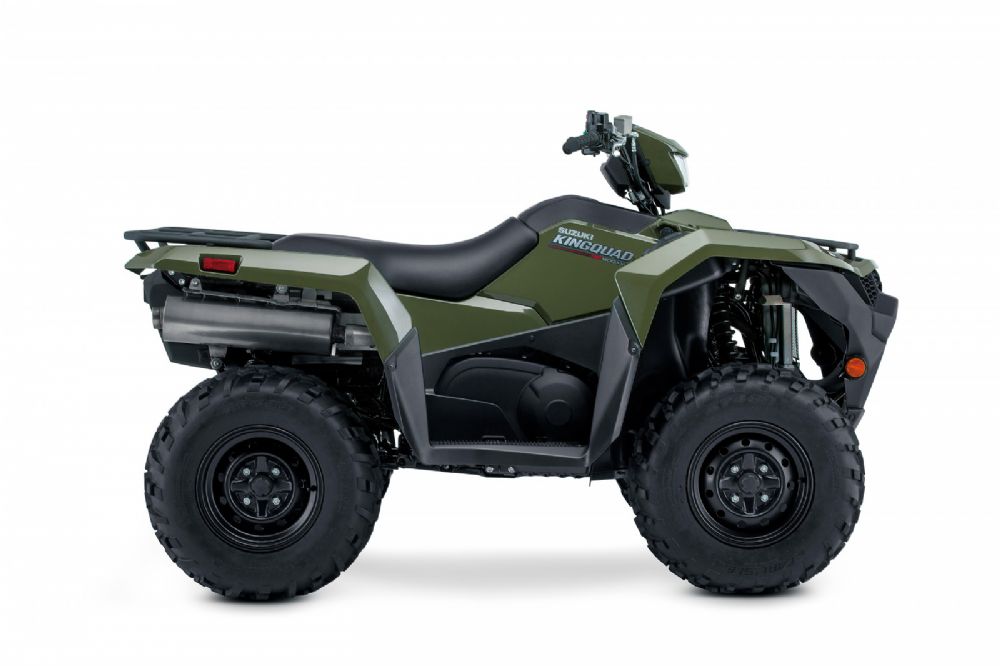

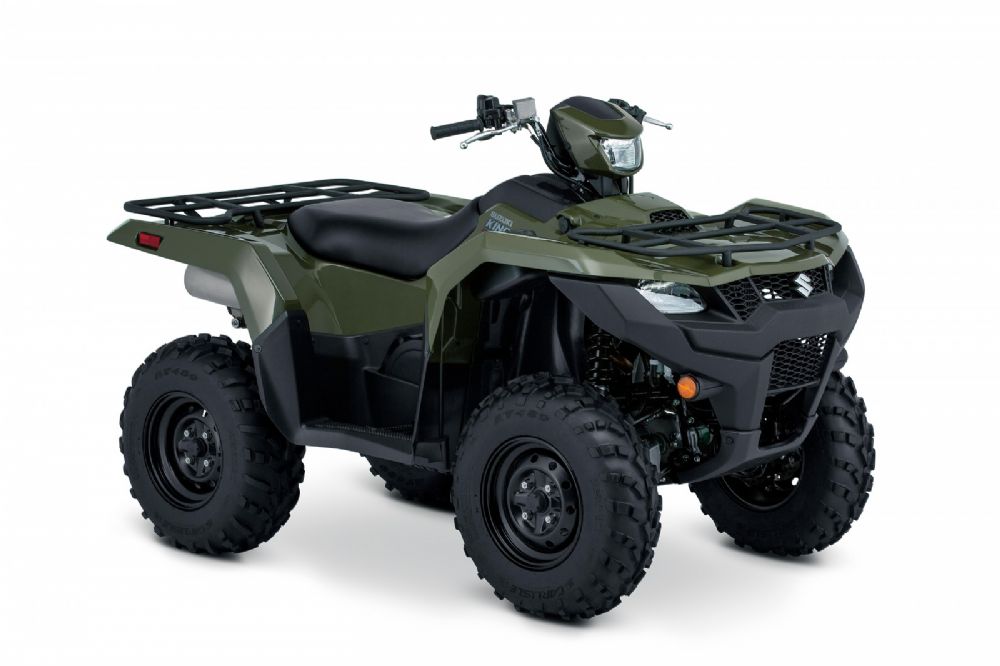

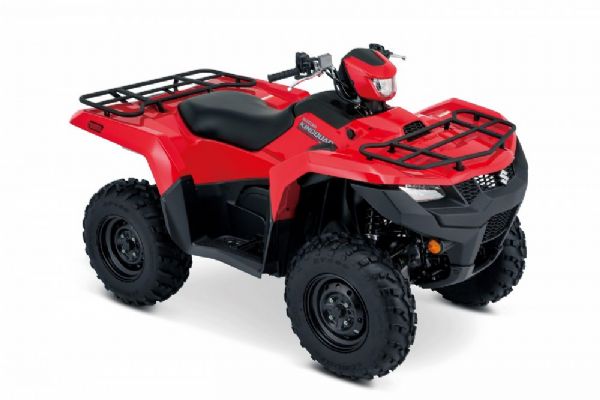

Suzuki Kingquad 500 LT-A500X

 The most innovative and exciting Suzuki ATVs to date, the new KingQuad 500 builds on over 30-years of engineering experience. Built tough for every ride, this new models achieves a higher level of balance between practical use and leisure riding. The new edgy new styling and leading technology are the result of Suzuki expertise.

SPECIFICATIONS

Engine capacity:   493 cc

Engine:              4-stroke, single cylinder, SOHC, 4-valve

Compression ratio:9.9:1

Lubrication:         Wet sump

Ignition:             Electronic Ignition

Fuel system:       Fuel injection

Starter:              Electric

Transmission:      CVT, 2-speed forward with reverse and selectable 2WD, 4WD

Front suspension:Independent, double wishbone, oil-damped, spring preloaded, 5 way adjustable

Rear suspension: Independent, double wishbone, oil-damped, spring preloaded, 5 way adjustable

Front brakes:      Dual discs, hydraulically operated

Rear brakes:       Sealed oil-bathed multi-disc

Front tyres:        AT25 x 8-12, tubeless

Rear tyres:         AT25 x 10-12, tubeless

Ground clearance:260 mm

Fuel capacity:      17.5 litres

Seat height:        920 mm

Kerb mass:         315 kg
