The McHale 991 range of round bale wrappers sets the pace for efficient and effective round bale wrapping. The 991 round bale wrapping range features practical design, quality components and precision engineering making the McHale bale wrapping range the first choice for contractors and farmers.
Packed with practical and reliable features, the 991 round bale wrapper range is designed with the efficient operator in mind. Round bale wrapper users should look towards the hydraulically operated cut and tie system and the efficient round bale wrapper dispenser, which maximises film usage and the 991 round bale wrappers patented ground supported damper system. Like all McHale round bale wrappers, the high output fully automatic 991BE bale wrapper will deliver a tightly wrapped silage bale which contains all the natural juices, ensuring increased nutritional value, while improving environmental protection.
Ground Supported Damper - McHale 991BE Fully Automatic Round Bale Wrapper
All McHale 991B round bale wrappers feature the uniquely designed McHale patented ground supported bale damper system. This is one of the most important features on the McHale round bale wrapper range.
Only a McHale round bale wrapper will give you a ground supported bale damper, which will gently lower the wrapped bale to the ground and at the same time eliminate all stress to the chassis of the round bale wrapper. When the rotating wrapping table stops on the 991BE round bale wrapper and is raised to the tip position, the heavy-duty bale damper raises to cradle the bale while a second arm is lowered automatically to the ground. The heaviest of round bales can then be gently lowered eliminating any damage.
Hydraulic Cut and Hold - McHale 991BE Fully Automatic Round Bale Wrapper
The McHale round bale wrapper range is fitted with a hydraulically operated cut and hold system, which at the end of the wrapping cycle cuts and holds the film in position ready to wrap the next bale. This time saving device eliminates the need to manually reattach the wrapping film on the 991BE round bale wrapper. Uniquely designed, this system, which is fitted as standard on all 991 round trailed bale wrappers works reliably and consistently in all weather conditions.
Quick Fit Dispensers - McHale 991BE Fully Automatic Round Bale Wrapper
The McHale 991BE Round Bale Wrapper dispensers lock and load system makes film loading really easy. When removing the core of the used roll the dispenser bobbin locks in place. When a new roll is loaded it can be locked in place by simply pulling the cord on the dispenser of the 991BE round bale wrapper.

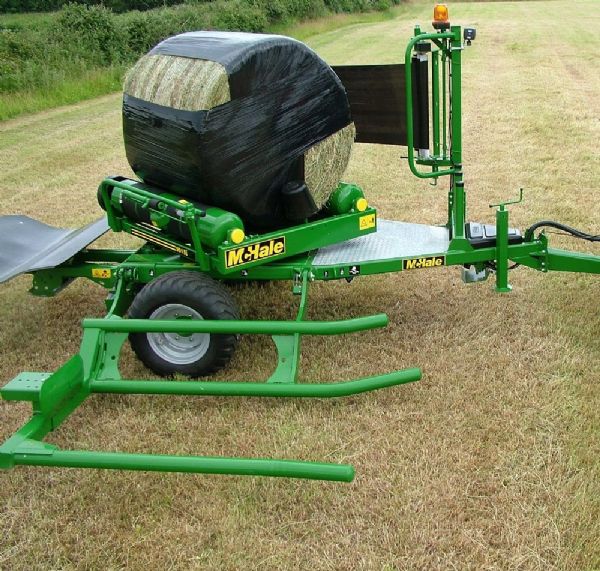

Auto Load Lift Arm and Heavy Duty Chassis - McHale 991BE Fully Automatic Round Bale Wrapper
The 991BE round bale wrapper has an auto load function which means as you drive into the bale, with the simple press of a button the lift arm on the bale wrapper will go down to pick up the bale. The round bale is positioned in the lift arm when the button is pressed again the lift arm will automatically load the bale and then move out of the way to allow the table to automatically start the bale wrapping cycle.
The 991BE round bale wrapper chassis and lift arm have been extensively tested over the last 15 years. Many machines in the market place have wrapped 150,000 bales and customers have been more than happy with the way this heavy-duty bale wrapper has stood up to the task.
Round Bale Wrapping Table - McHale 991BE Fully Automatic Round Bale Wrapper
The round bale wrapping table on the 991BE round bale wrapper is constructed of four heavy-duty belts, which ensure smooth and even bale rotation even when dealing with loose or asymmetric bales.
A smooth wrapping seal is guaranteed as the 991BE round bale wrapper delivers a 50% overlap. On the 991BE round bale wrapper shear bolt protection ensures that asymmetric shaped bales can not damage the machine\'s gearbox or drive line.
Film Break Sensors - McHale 991BE Fully Automatic Round Bale Wrapper
The 991BE round bale wrapper comes complete with a film break sensor. This sensor monitors the plastic as it passes from the dispenser onto the bale. Should the plastic break or run out the operator will be notified with an out of film message on the control box.
The bale will then rotate in reverse on the bale wrapping table until it reaches the point where the film broke; this ensures when the film error is corrected that the bale is wrapped well and gets the required even coverage.

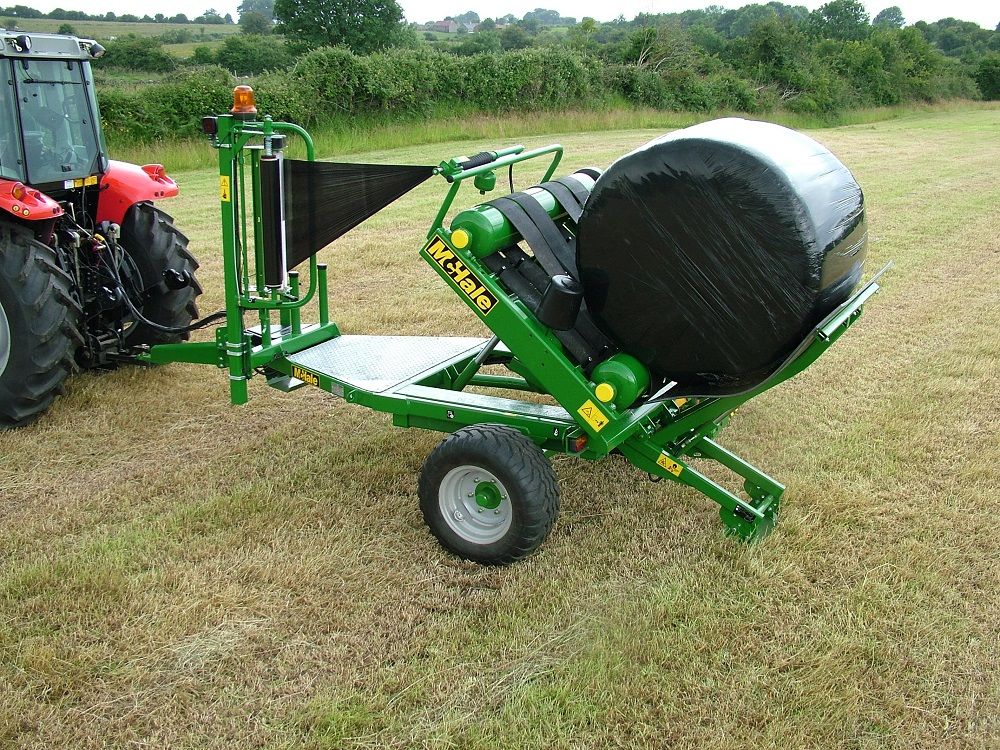

Optional Side Tip - McHale 991BE Round Bale Wrapper
An optional side tip is available on all McHale 991BE round bale wrappers. This allows the machine to eject the bales on their ends after wrapping is complete.
The main advantage of a side tip system is:
- it tips the bales on their ends where there is more plastic, thus reducing damage in stubbly fields.
- it allows the bales to hold their shape better.
Control Options - McHale 991BE Fully Automatic Round Bale Wrapper
The 991BE round bale wrapper comes complete with a cab mounted expert series electronic control console, which fully automates the bale wrapping operation.
When driving into a round bale, the simple press of a button will lower the bale wrapper lift arm from the float position. Once the round bale is in the arm the round bale can be loaded onto the bale wrapper table by pressing the button again. When the bale is loaded and the lift arm is clear of the bale wrapping table the 991BE bale wrapper will wrap the bale. Tipping can either be automatic, or in more testing conditions, can be switched to manual so the operator has full control.
